Product Advantage
10kWh residential energy storage system offers extended backup power, increased energy independence, enhanced load management, future-proofing capabilities, and environmental sustainability. It provides homeowners with greater control over their energy usage, cost savings, and a more reliable and sustainable energy solution for their homes.
This 10kWh energy storage system is a versatile and user-friendly solution for residential and small commercial customers looking to improve their energy efficiency, reduce costs, and enhance power resilience.
Technical Parameters
Model | SmartPack-SFL10AD |
System Parameters |
Battery type | LFP |
Total energy | 10.24kWh |
Usable energy | 9.216kWh |
Rated voltage | 51.2V |
Operating voltage range | 44.8V~57.6V |
Rated charging/discharging power | 5120W |
Rated charging/discharging current | 50A |
Max.charging/discharging current | 100A |
Max.units in parallel | 4 |
General Parameters |
Communication | CAN/RS485/RS232 |
Dimension (W*H*D) | 860*520*165mm |
Weight | 110 kg |
Protection rating | IP20 |
Cooling | Natural |
Operating temperature | Charge:0°C～+55°℃/Discharge:-20℃~+60℃ |
Humidity | 5%~95% |

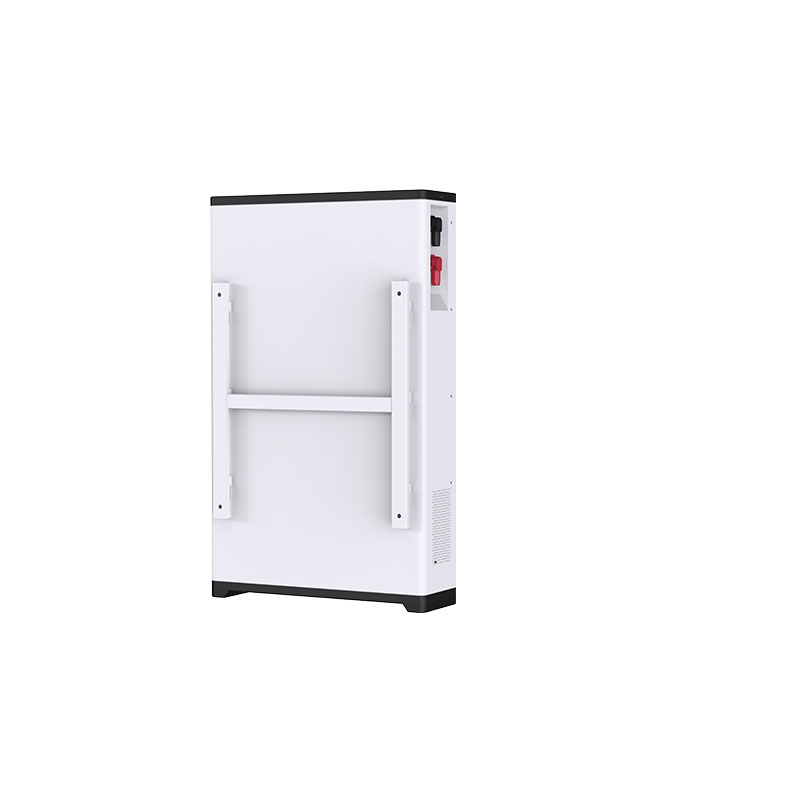

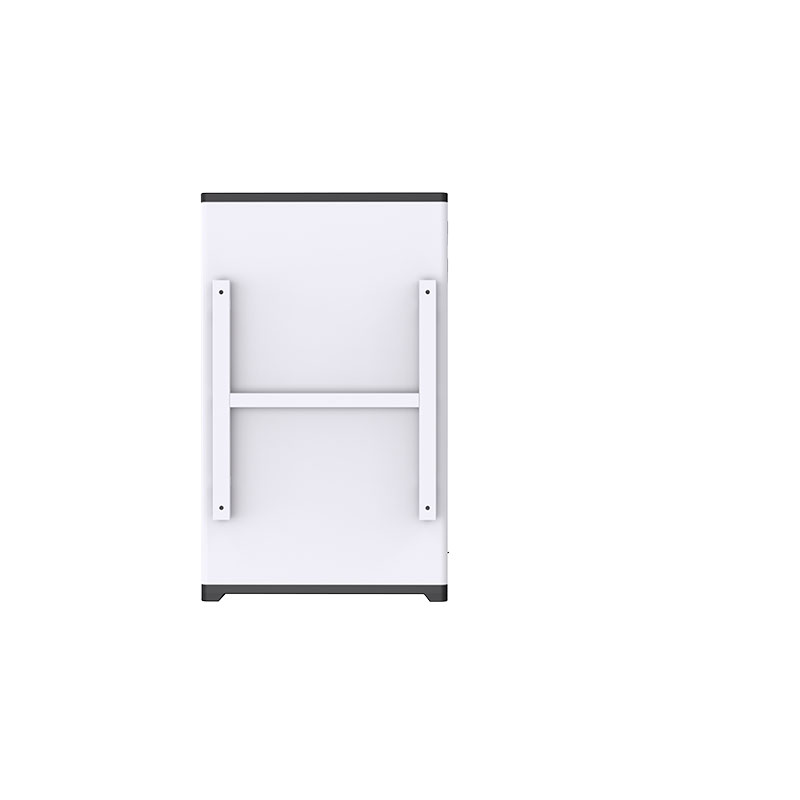

Installation | Wall-mounted /Floor stand |
Max.operating altitude | 2000 m |
Standard | UN38.3,IEC62619,ROHS,EMC,MSDS |
