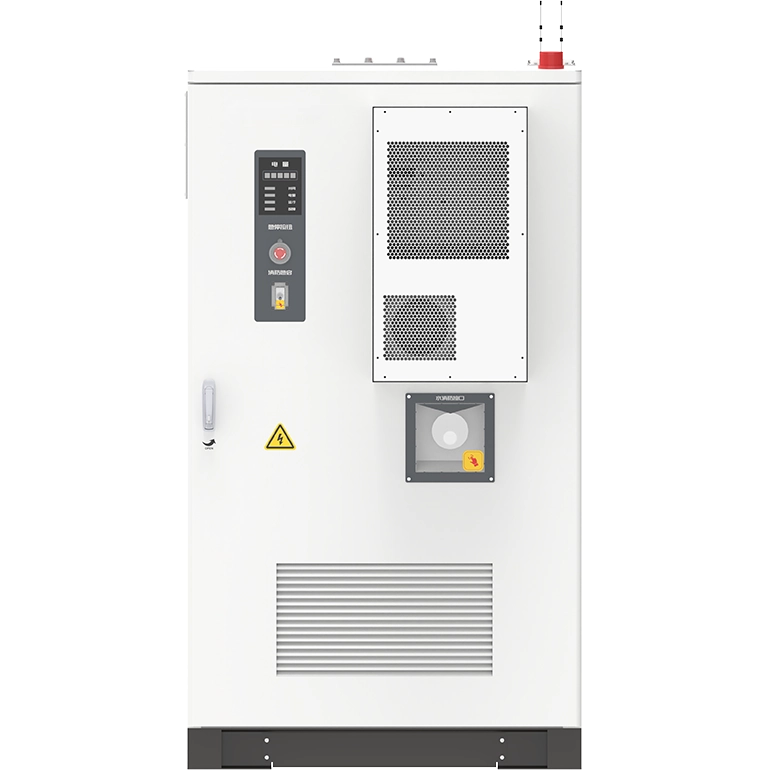

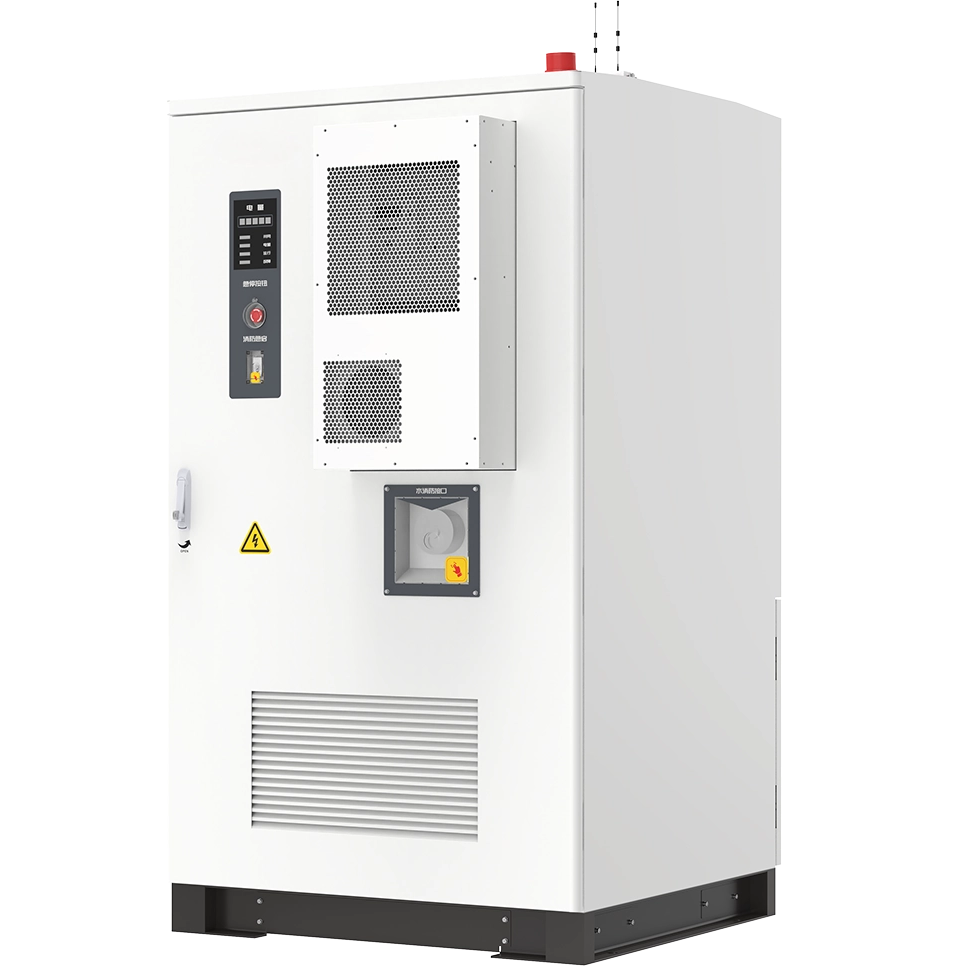

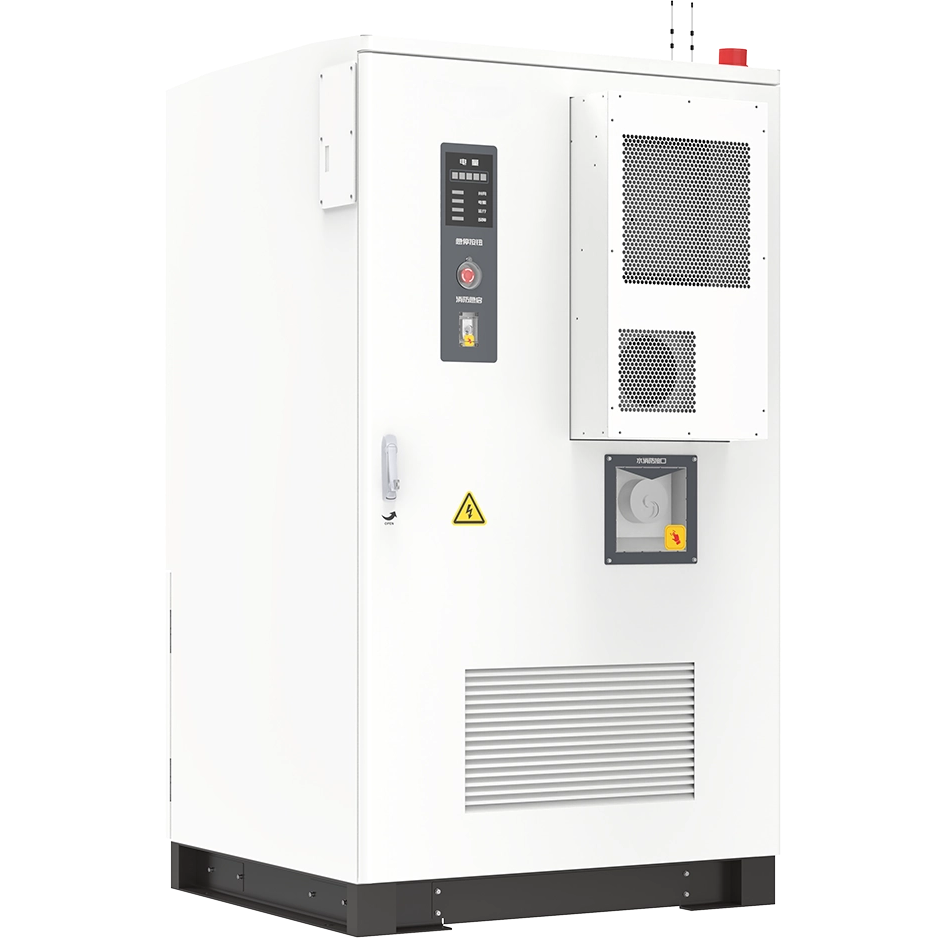

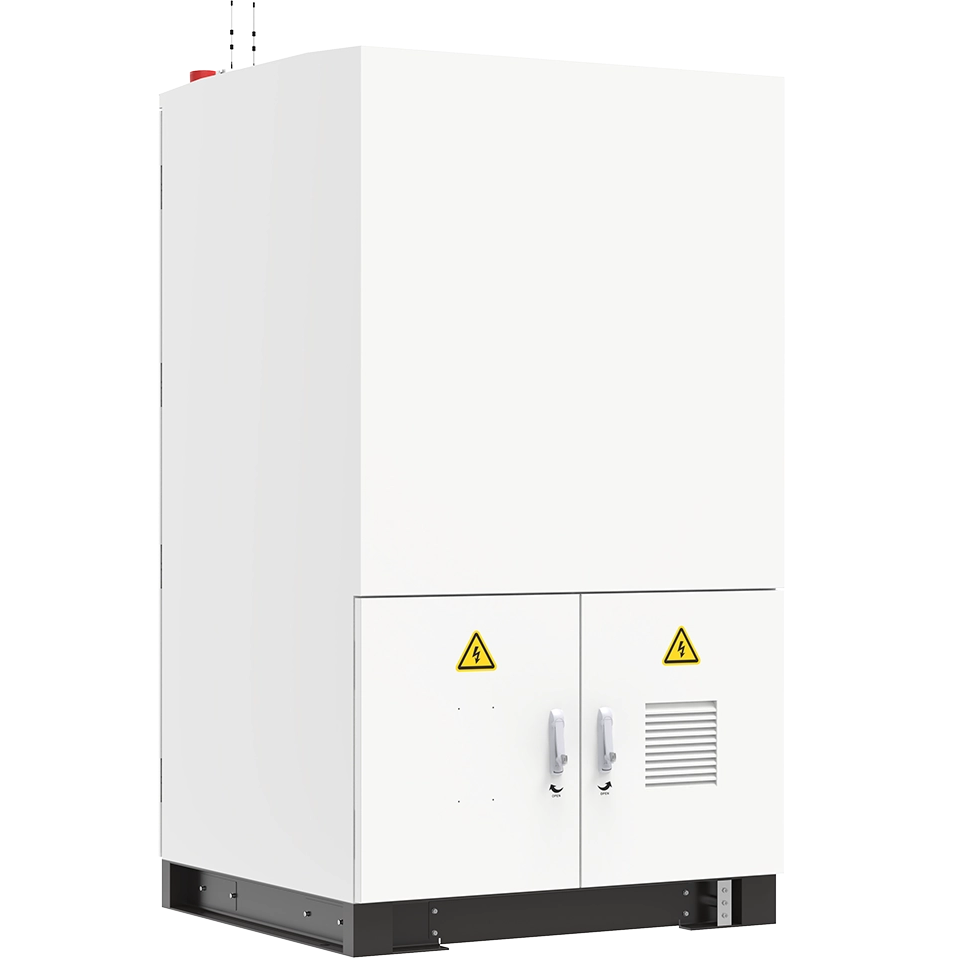

Industrial ESS-YTPowerSmart 115kwh Energy Storage System

The smart 115kwh cabinet integrates a smart controller hybrid inverter, STS, high-power battery rack, temperature control, fire fighting system, electrical auxiliary in a unified cabinet design.

Availability:

Quantity:



Inquire Add to Basket

Industrial Battery Storage Systems 115kwh ESS Energy Storage Systems Business Energy Storagy System

Product Description

Features

Safe:
Smart warning ensures energy storagesafety and precisetemperature controlextends product life by 12%.

Simple:

Occupying only 1.265m of floorspace,modulardeployment enables rapid installation,whileprefabricated components save 15%in costs.

Smart:

Cloud-based smart operation andmaintenance,Al-enabled remotemonitoring and early warning ensurethe full lifecycle of batteries,whilemulti-mode switching increasesrevenue.

Expansive
Hand-in-hand parallel expansion,coveringa wide power range from 50kW to 300kW.

Technical Parameters

Model		YTSmart115
ESS parameters	Rated power	115.2KWh
	Rated capacity	150Ah
	Rated voltage	768Vdc
	Battery voltage range	537.6～691.2 Vdc
	Rated charge/discharge current	80A
	Max.charge/discharge current	160A
AC parameters	Rated output power	50KW
	Max.input apparent power	60 KVA
	Grid-connected Max.output apparent power	55 KVA
	Off-grid Max.output apparent power	55 KVA
	Max.output current	75A
	Rated voltage(input&output	3L/N/PE;220/380V;230/400V;240/415V
	Grid frequency	50Hz/60Hz
	THDu	<3%@rated power&linear load
Efficiency parameters	Max.PV conversion efficiency	98.8%
Efficiency parameters	EU efficiency	98.3%
Ambient parameters	Operating temperature	-25℃~55℃(45℃derating)
	Storage temperature	-20℃~45℃
	Humidity	5~95%,no condensing
	Altitude	2000m(2000m derating)
	Cooling mode	Smart air conditioner,smart fan
Other parameters	Dimension(WHD)	115011002050mm
	Weight	1450 kg
	Ingress protectior	IP54
	Communication mode	RS485,Ethernet,4G
